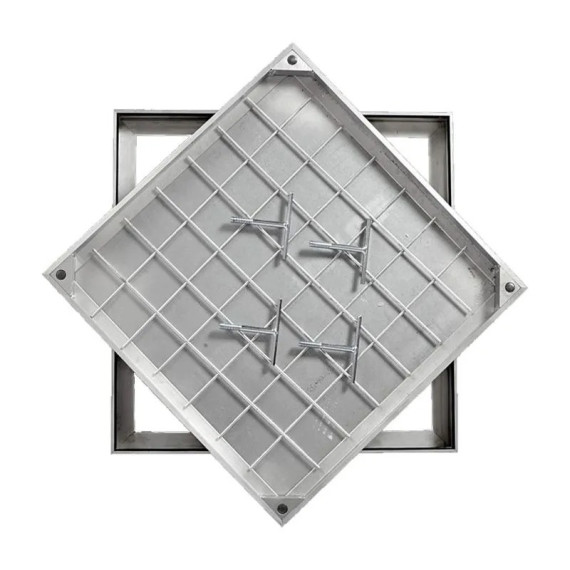

Aluminium Recessed Access Cover

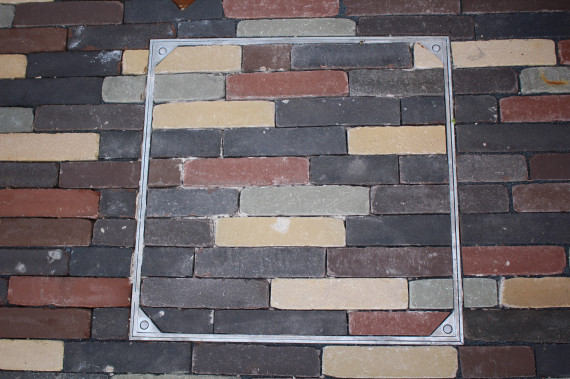

The aluminium recessed access cover is designed to accommodate a floor finish within the cover tray, providing discreet access while maintaining a continuous paved or finished surface.
It has a 300 x 300mm clear opening, 390 x 390mm overall frame size and a 40mm frame depth. The recessed tray is suitable for 20mm paving.
Manufactured from aluminium, the cover and frame feature a triple seal and are classified as domestic light duty.
Key specifications:- Material: Aluminium
- Clear opening: 300 x 300mm
- Overall frame size: 390 x 390mm
- Frame depth: 40mm
- Suitable for: 20mm paving
- Recessed tray depth: 27mm
- Seal: Triple seal
- Duty: Domestic light duty
- Slow-moving wheel load: 1.25 tonnes
- Gross laden vehicle weight: 5 tonnes
- Lifting keys: Sold separately
The stated load rating applies when the cover is installed with concrete infill and floor finish in accordance with the manufacturer's installation requirements.
Please note lead times may vary dependant on stock availability.
Other sizes and depths are available on request. Please email our sales inbox with your required specifications or give us a call to discuss your requirements.
